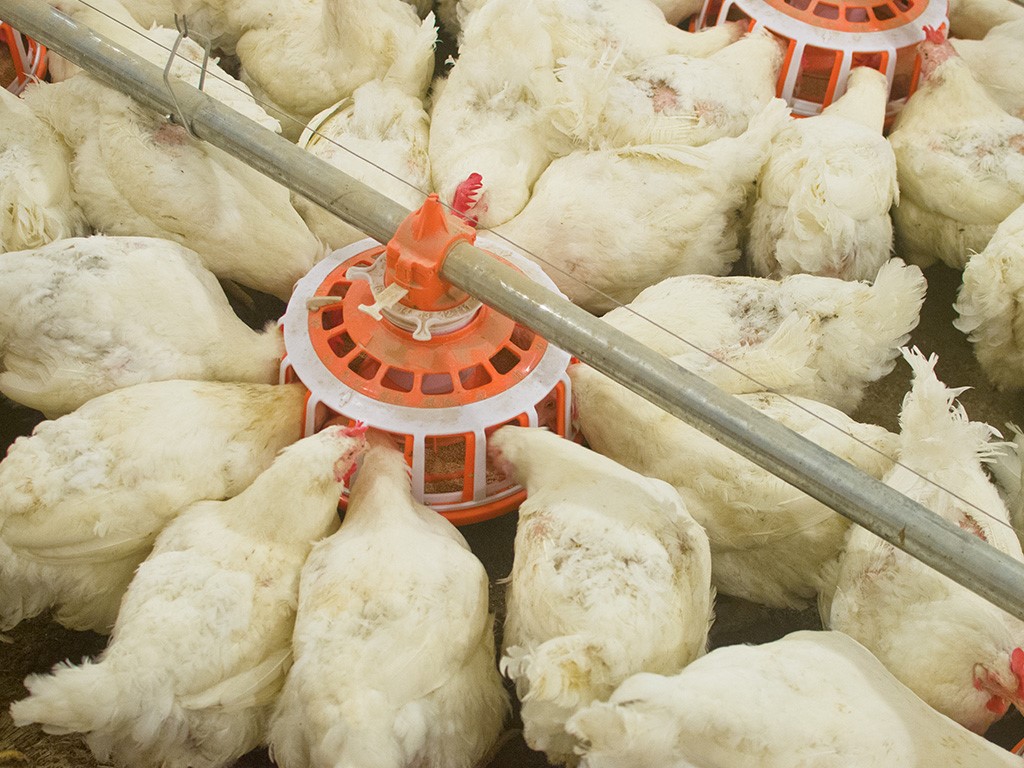

Main features of broiler feeding pan
The material volume adjustment of the external seasoning pan is divided into 5 gears, and the rest of the material pans are 10 gears;
●The material door switch can adjust the output volume until the material tray is closed;
●Convenient, fast and accurate way of adjusting the discharge amount;
●The bottom of the plate can be removed and placed on the ground to be used as a feeding plate for chicks;
●The v-shaped corrugated plate bottom can reduce the amount of material stored at the bottom of the plate, and the chicks can eat freshly, preventing the chicks from lying in the pan for a long time to eat or rest;
●The edge of the feed pan is inclined to the center of the pan to avoid waste caused by spilled feed;
●Smooth the inwardly inclined outer edge to prevent broiler crops from being injured, and to eat safely and comfortably;
●The installation method of the material pan on the material pipe is divided into two types: fixed type and swing type

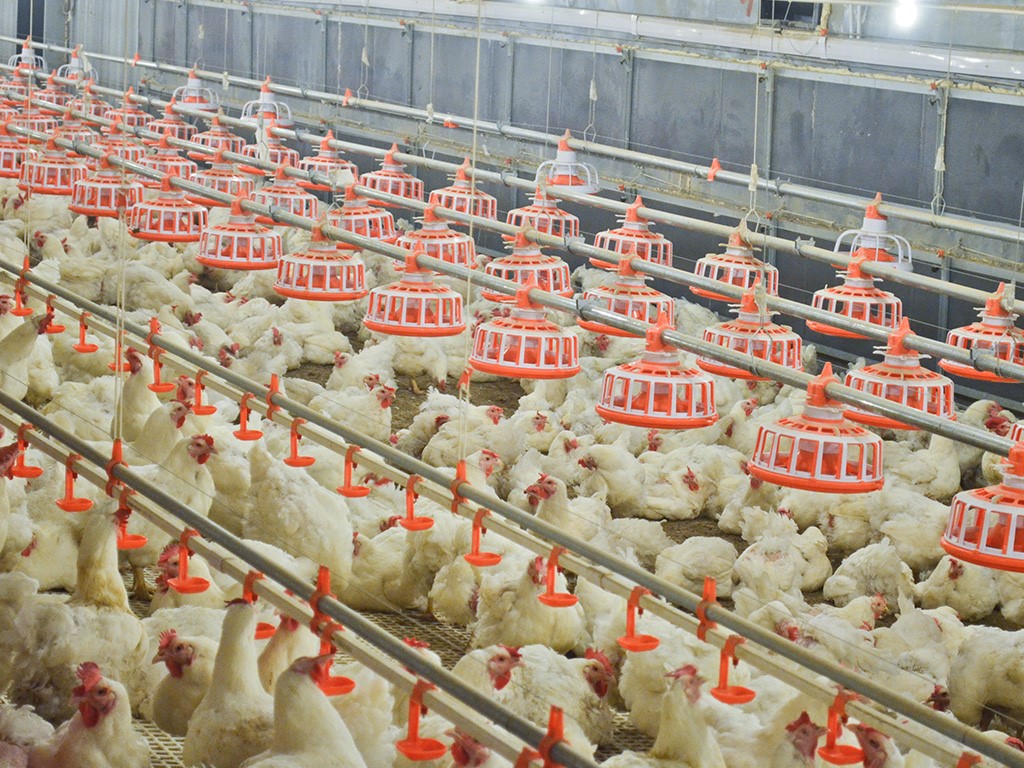

Breeder chain-disc feeding system
Main features of breeding hen feeder
●4 reels/3m, that is, the distance between reels is 750mm;
●The diameter of the tray: 360mm;
●Material: pp——polypropylene;
● Feeding amount: 12.5 per plate on average;
●16 feeding positions with a width of 40-52mm divided into 11 levels, which are suitable for all broiler breeders with different breeds and day-age feeding requirements;
●The height of the feeding hole is divided into three levels: 70mm, 80mm and 90mm. When the width of the feeding hole is 52mm and the height is 90mm, the chicks can enter and exit freely;
●When the height of the feeding hole is 70mm, ensure that the feed does not overflow and save feed;
●Feeding tray capacity: divided into 16 levels, 300-800g/tray, which can meet the feeding needs of chickens at different stages;
●It is designed with a switch board, which can switch each material tray at will;
●The bottom of the pan is a hanging pan, which is convenient for disassembly. It is not necessary to dismantle all of them when flushing, and it is convenient and hygienic when reinstalling.
Post time: Nov-16-2021
